CONTROL PANEL FABRICATION

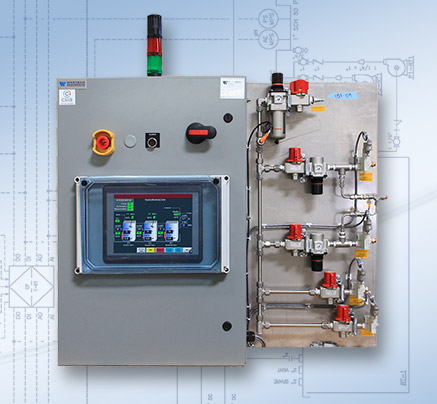

Control Panel Fabrication

Wastech Controls and Engineering, Inc. has been designing, fabricating and installing standard and custom control panels for over 25 years.

Every panel we ship has been manufactured with the highest quality workmanship, is UL rated and is guaranteed to meet and exceed all your safety requirements. Click the buttons below to learn more.



IPCPIndustrial Pump Control Panel

DownloadButtonThe standard Industrial Pump Control Panel (IPCP) is a UL-listed control panel designed for simplex or duplex pump control in industrial pump down applications. Custom configurations including PLC control are available, call or email Sales for more details.


  • UL-Listed control panel
  • NEMA 4/4X, hinged door enclosures
  • Illuminated E-stop with protective shroud
  • Power On green light indicator
  • Pump Run green light indicator
  • Pump Hand-Off-Auto selector switch (non-illuminated)
  • Overload light for each pump (for 208-230/460 VAC 3-phase panels)
  • High-high level alarm red light indicator with dry contact
  • Leak alarm red light indicator

Back to top


DownloadButton

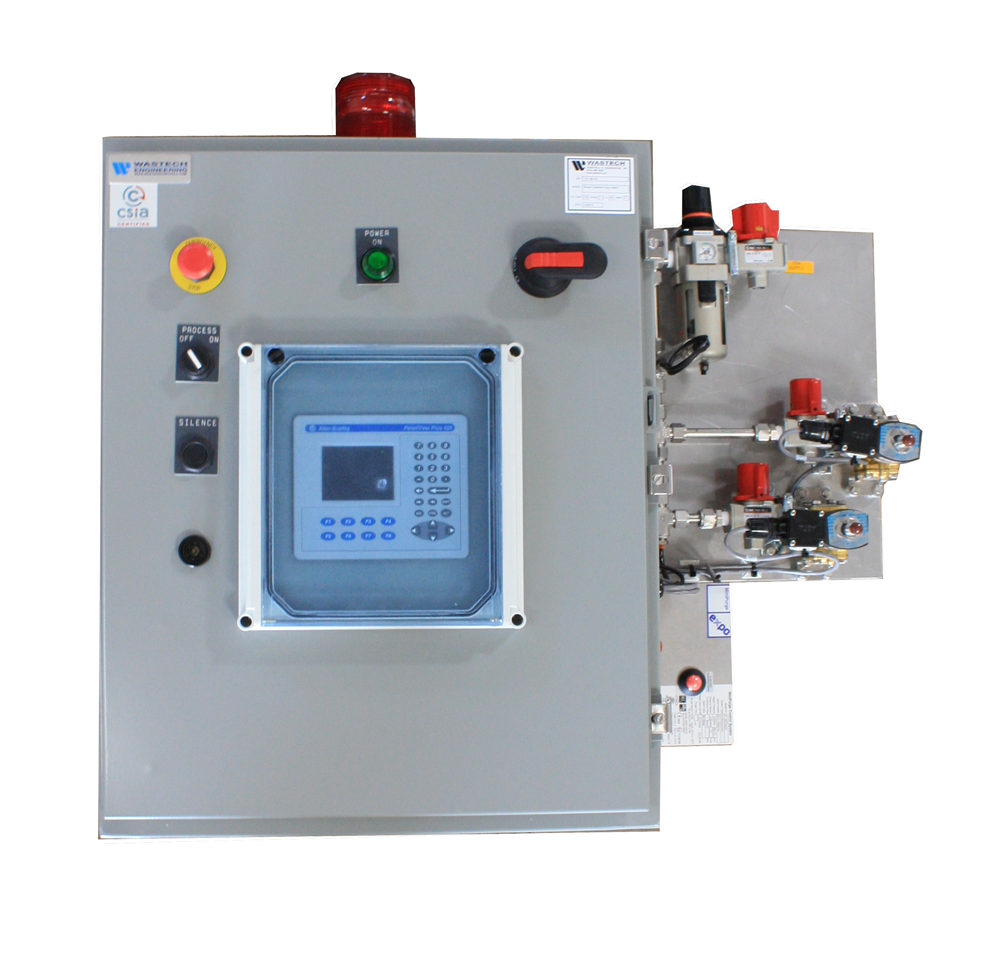

Industrial AOD Pump Control Panels

131-166-501CP-CROPPED

The standard Industrial AOD Pump Control Panel (IAPCP) is a UL-listed control panel designed for simplex or duplex pump control in industrial pump down applications. Custom configurations including PLC control are available, call or email Sales for more details.

Standard features include:

  • UL-Listed control panel
  • NEMA 4/4X, hinged door enclosures
  • Illuminated E-stop with protective shroud
  • Power On green light indicator
  • Pump Run green light indicator
  • Pump Hand-Off-Auto selector switch (non-illuminated)
  • High-high level alarm red light indicator with dry contact
  • Leak alarm red light indicator

Back to top


MONPanel

pH and Flow Monitoring Panels

DownloadButtonWastech’s standard pH and Flow Monitoring Panel is designed for simple and convenient monitoring and record>i>ng of pH and/or flow rate. The panel is primarily used to monitor and record discharge flow and continuous pH values in order to prevent NOV’s and fines. It is generally installed prior to the sewer connection and provides permanent records per city requirements and general corporate compliance. It is simple in design and operator friendly. It does not require maintenance except for simple pH sensor (OPTIONAL) calibration. With standard design configurations, the panel can be supplied with one or two pH readings, one pH and one flow, or just flow rate. It can also be ordered with pH electrodes and flow sensors pre-wired for simple installation.>

Standard features include:

  • UL Listed control panel
  • +GF+ Signet pH transmitter
  • Continuous pH monitoring
  • +GF+ Signet flow transmitter
  • Continuous flow monitoring
  • NEMA 4 enclosure

Back to top

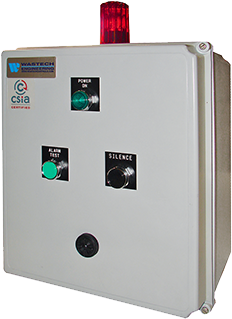

Leak Alarm Control Panel

DownloadButtonLeakAlarmPanel

Wastech Leak Alarm Control Panels (LACP) are designed for leak detection and alarm notification in industrial applications. Custom configurations are available, call or email Sales.



Standard features include:

  • UL-Listed control panel
  • Red “push-to-test” pilot light for each sensor
  • Green power on indicator pilot light
  • Alarm buzzer with silence button
  • Red common alarm beacon
  • Common alarm dry contact to control a device or valve
  • 5 ft. 115 VAC power cord
  • Optional remote notification devices

Back to top


NemaPanel

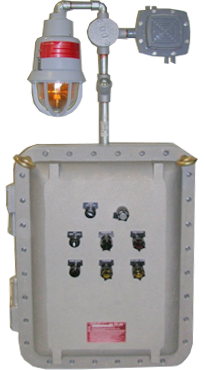

Hazardous Area Panel

Industrial control panels (ICPs) for hazardous environments> are a specialty of Wastech Controls & Engineering Inc. Our experienced engineers will offer you safe and economical solutions for control panels to be used in hazardous locations, including panels with intrinsically safe circuits.

Explosion Proof Panels may be installed in Class I, II or III, Division 1 and 2 Hazardous Locations according to appropriate National Electrical Code (NEC) installation practices. These control panels can consist of a NEMA 7 explosion proof enclosure or a general purpose enclosure with purging / pressurization features.>

Industrial Control Panels with intrinsically safe circuits may be connected to intrinsically safe components (such as pumps, sensors, alarm indicators, mixers, etc.), but the panels MUST NOT be installed in a hazardous location. These panels provide low energy power and signals through special intrinsically safe barriers into the hazardous area. Wiring must be routed in separate raceways and segregated from all power and other circuits. If the wiring is not designed correctly, a fire or explosion could occur. Special fittings are installed in the panel that either prevent the passage of hot gases in the event of an explosion, or the passage of hazardous gases, dust or fibers that could be ignited by the electrical circuits in the panel. These panels may be UL listed under the UL913 category.

Back to top


CustomCP

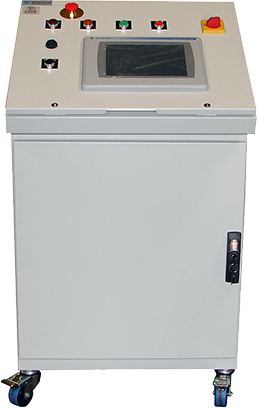

Custom Control Panel Fabrication

DownloadButtonWastech can design and fabricate a control panel to handle virtually any process.

Regardless of the complexity of your process, Wastech will engineer and design a panel that will integrate seamlessly into your unique application with the same high level of design and craftsmanship as found in our standard panels. >All wiring is properly labeled and organized, wiring is color coded and runs through raceways and, when installing a Wastech custom control panel, all field connections are made in one common area making>cp-craftsmanship installation quick and easy.

For more information, or to consult with one of our Application Engineers, call (818) 998-3500 or email us at >This email address is being protected from spambots. You need JavaScript enabled to view it..>
