FIBERGLASS PUMP LIFT STATION

FPLSLarge
FPLSSmall1 FPLSSmall3

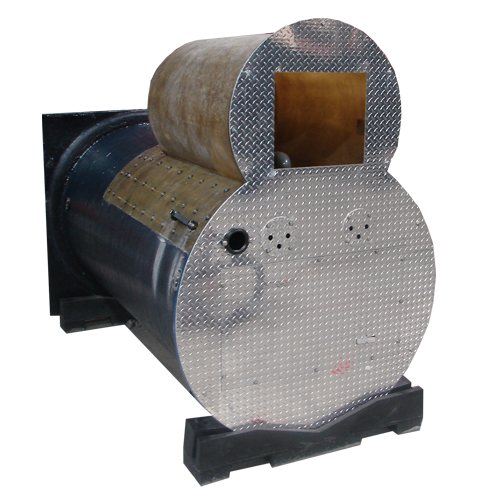

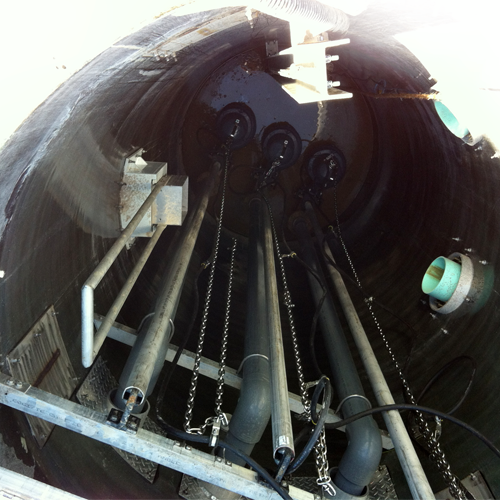

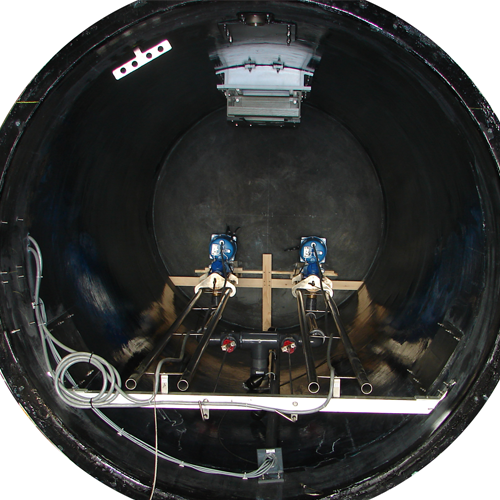

DownloadButtonWastech’s Fiberglass Pump Lift Stations are designed for below grade installations. They are used for pumping large volumes of wastewater and include submersible sump pumps installed on guide rails. Custom configurations are available, call or email Sales for more information.

Specifications

  • Simplex (one pump), duplex (two pumps), or triplex (three pumps) configuration
  • Non-Hazardous applications with temperatures up to 180°F
  • 316 stainless steel corrosion resistant sump pumps with vortex impellers for solids handling applications
  • Level switch assembly or level transmitter for pump ON/OFFcontrol
  • Side or top inlet connections
  • Remote UL-Listed Control Panel
  • Factory-assembled and tested before shipment













Standard Features

  • Cylindrical fiberglass basin with lifting lugs for installation and anti-floatation flange
  • Ortho Polyester resin or Vinyl Ester liner for added corrosion resistance
  • Slip-resistant aluminum cover rated for pedestrian traffic with access hatches
  • Submersible 316 stainless steel sump pump with guide rail, dual Viton mechanical seals, 33 ft PVC jacketed cable, and built-in overload/thermal protection
  • Check and isolation valves on the discharge of each pump to prevent backflows and facilitate maintenance
  • PVC, CPVC, or stainless steel piping and fittings
  • Lockable disconnect for each pump to allow maintenance on one pump while the others are still in service
  • NEMA 4 junction box to connect to remote UL-Listed control panel

Optional Features

  • PLC-based control panel
  • Pump VFD control
  • Fall through protection for hatches
  • Fiberglass valve box for discharge piping manifold
  • Inlet basket strainer with guide rail mechanism
  • Traffic rated aluminum cover
  • Double containment
  • Explosion proof and intrinsic safe designs for hazardous areas

Have questions about ordering a custom system?

One of Wastech’s application engineers will discuss the nature of your process with you exclusively for your facility.
Call (818) 998-3500 or email This email address is being protected from spambots. You need JavaScript enabled to view it. for a quote or more information.
