HIGH CAPACITY PUMP LIFT STATION

WastechHCPLS091817
HCPLSSmall4 WastechHCPLS2091817

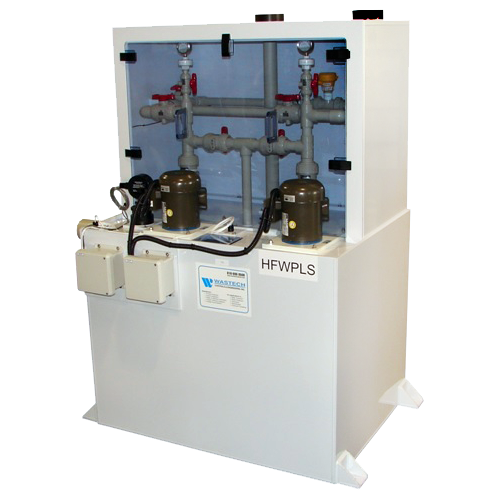

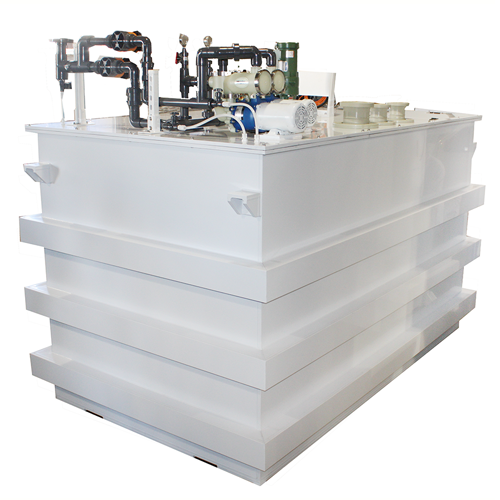

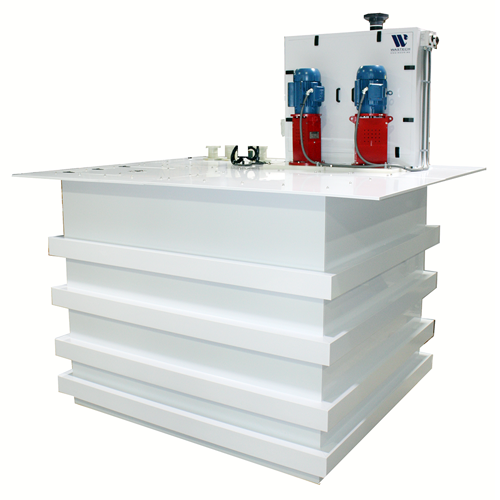

DownloadButtonWastech's High Capacity Pump Lift Stations (HCPLS) are designed for transferring high volumes of water, chemicals and wastewater when a gravity drain is not possible. All HCPLS systems use thermoplastic vertical centrifugal pumps for corrosion resistance. Custom configurations and tank geometries are available, call or e-mail Sales.

Specifications

  • Simplex (one pump), duplex (two pumps), or triplex (three pumps) configuration
  • Multipoint level switch assembly with digital level display
  • Separate lockable motor disconnects that allow maintenance work to be performed on one pump while the other is still in service
  • All pump lift stations include a high-high level switch to activate a high level alarm
  • Integrated or remote control panel
  • Indoor or outdoor installation



Standard Features

  • Custom fabricated polypropylene tank and skid with forklift slots
  • Vertical centrifugal pumps with all non-metallic wetted parts available in PVC, CPVC, PP, or PVDF
  • Thermoplastic closed and dynamically balanced pump impellers
  • Vanite® outer vs. ceramic inner wet shaft bearings with product flush bearing lubrication
  • Pump suction basket strainer with 1/4” holes
  • Check valve for each pump with Viton seals to prevent liquid from flowing back into the tank
  • NEMA 4X junction box to terminate instrumentation
  • View window for maintenance access

Optional Features

  • Fabricated polypropylene double containment tank with float leak switch
  • Discharge manifold with isolation ball valves
  • Seismic tie downs
  • Valve enclosure with latched clear PVC doors
  • PLC-Based control system
  • Redundant high level switch
  • Discharge pressure gauges with isolation valves
  • Vortex impellers for handling sludge and slurries
  • Stainless steel tanks and pumps

Have questions about ordering a custom system?

One of Wastech’s application engineers will discuss the nature of your process with you exclusively for your facility.
Call (818) 998-3500 or email This email address is being protected from spambots. You need JavaScript enabled to view it. for a quote or more information.
