PORTABLE LAB PUMP LIFT STATION

LabPLSMain
PortableLabPLSSmall1 PortableLabPLSSmall2

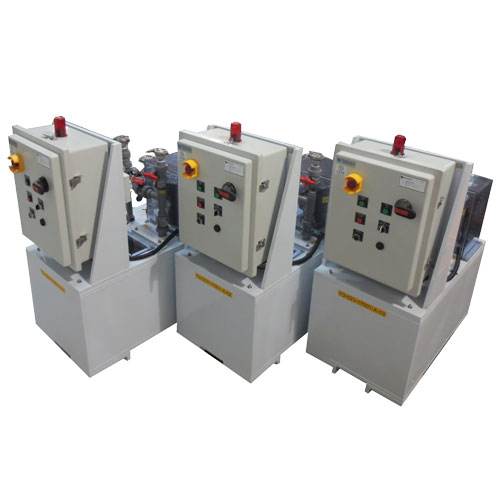

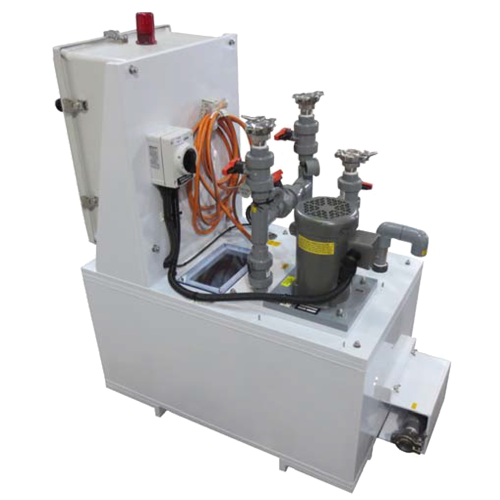

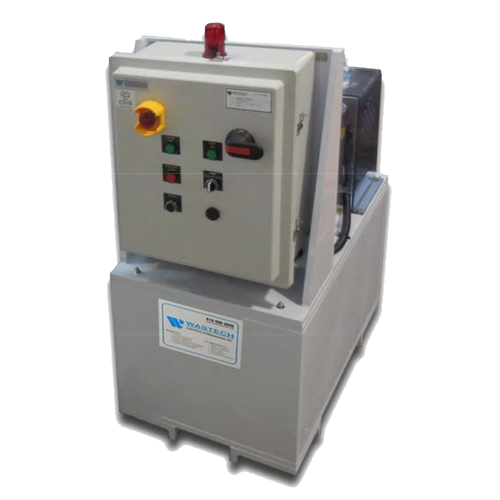

DownloadButtonWastech’s Portable Lab Pump Lift Stations (LDPLS) are mobile compact stations that are designed for transferring water, chemicals and wastewater when a gravity drain is not possible. Each LDPLS is supplied with heavy duty steel casters and a 5’power cord to allow the lift station to be easily moved from one place to another.

Specifications

  • Simplex (one pump) configuration
  • Multipoint level switch assembly with digital level display
  • Check valve on the discharge of the pump to prevent liquid from flowing back into the tank once the pump stops
  • Lockable motor disconnect that allows maintenance work to be performed on the pump without opening the control panel
  • All pump lift stations include a high-high level switch to activate a high level alarm
  • Lift station includes an integrated Wastech IPCP series industrial control panel



Standard Features

  • Fabricated 40-gallon polypropylene tank
  • Fabricated polypropylene lid
  • One vertical centrifugal pump with CPVC pump head
  • Pump suction strainer
  • TEFC thermally protected motor
  • Lockable disconnect for pump
  • CPVC piping and valves with Viton elastomers
  • 1” FNPT top mount inlet connection
  • 1” FNPT top mount vent connection
  • 1” FNPT tank drain valve
  • 4”x6” view window for maintenance access
  • Multipoint level switch assembly with digital level display
  • NEMA 4X fiberglass enclosure with relay-based controls
  • Hand-Off-Auto switch for pump control
  • High level alarm light and buzzer
  • 5’ power cord
  • Heavy duty casters with brakes

Have questions about ordering a custom system?

One of Wastech’s application engineers will discuss the nature of your process with you exclusively for your facility.
Call (818) 998-3500 or email This email address is being protected from spambots. You need JavaScript enabled to view it. for a quote or more information.
