pH Adjustment Systems




pH Neutralization / pH Adjustment Systems for industrial wastewatertreatment
×

Warning

The form #7 does not exist or it is not published.

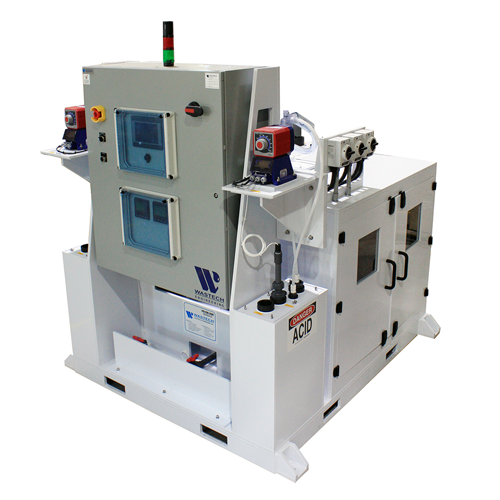

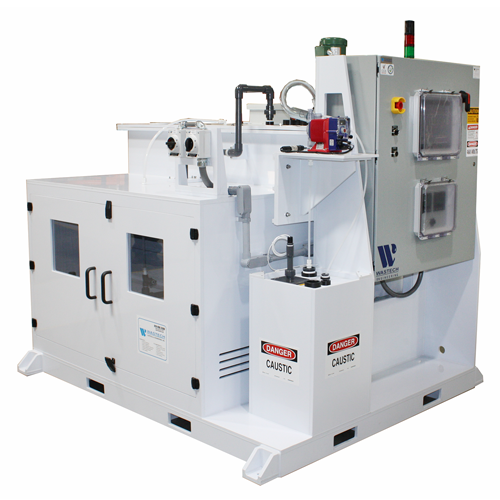

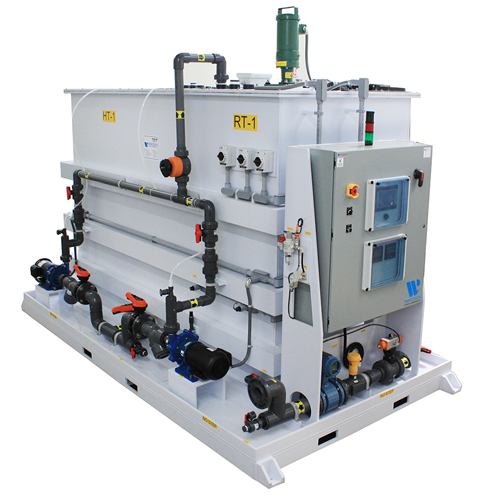

ProDELTA™ BATCH pH ADJUSTMENT SYSTEM

WastechProDELTABatch091417
ProDELTABatchSmall ProDELTABatchSmall2

DownloadButtonThe ProDELTA™Batch is a compact skid-mounted pH adjustment system designed for neutralizing process wastewater. Batch systems include an optional holding tank that stores wastewater before being transferred to the reaction tank. Batch systems use one active treatment stage along with effluent pH monitoring to ensure that the wastewater will be neutralized to the required discharge pH before entering the sewer line.



 Specifications:

  • Single stage treatment systems for pH range 2 - 12
  • 50, 100, 250, 500 and 1,000-gallon batch models available
  • Inlet temperatures up to 160°F
  • Fabricated polypropylene tanks and skid
  • Skid-mounted design, ready to install
  • Factory-piped, wired and tested before shipment
  • Indoor installation

Standard features include:

  • UL-Listed control panel
  • NEMA 4 powder coated steel control panel
  • PLC-based control system with color touchscreen HMI
  • Dry contacts for common alarm, influent permissive, and pH out of range
  • Run permissive for remote enable/disable
  • pH probes in reaction tank and discharge piping
  • PVC metering pumps
  • Seismic tie-down brackets
  • Metering pumps mounted on polypropylene pump shelves
  • Low level switch for customer-supplied chemical drums
  • Gravity or pumped discharge

Need a Custom System?

Wastech Controls and Engineering, Inc. offers custom design and engineering of state-of-the-art turnkey industrial process systems.

One of Wastech’s application engineers will discuss the nature of your process with you exclusively for your facility.
Call (818) 998-3500 or email This email address is being protected from spambots. You need JavaScript enabled to view it. for a quote or more information.
