VERTICAL PUMP LIFT STATION

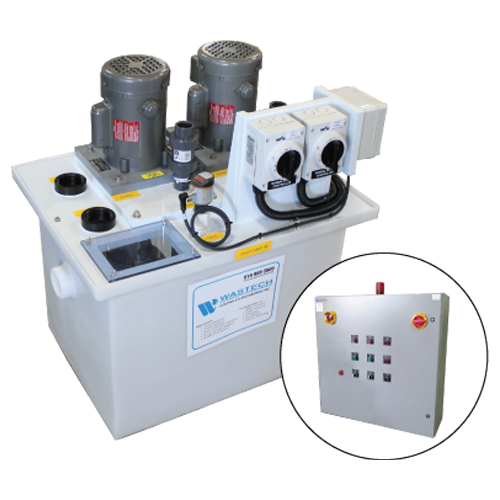

VPLSMAIN2

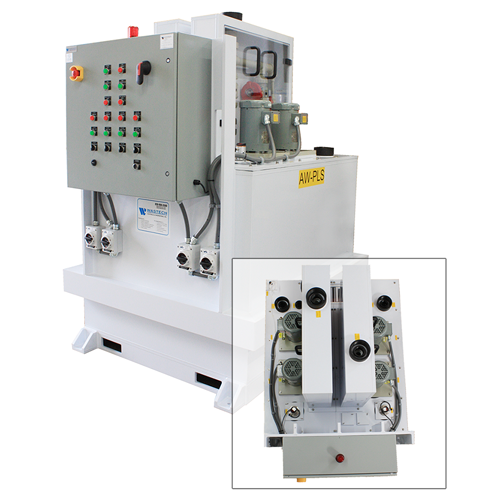

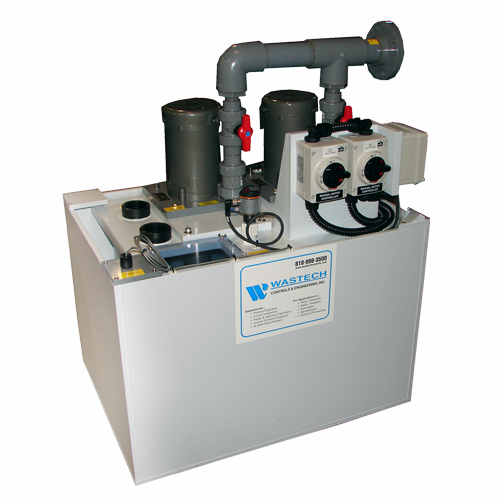

WastechDVPLS091817 VPLSSmall3


DownloadButtonWastech's Vertical Pump Lift Stations (VPLS) are designed for transferring water, chemicals and wastewater when a gravity drain is not possible. Larger pump and tank sizes and custom configurations available.

Specifications:

  • Simplex (one pump) or duplex (two pumps) configuration
  • Multipoint level switch assembly with digital level display
  • Check valves on the discharge of each pump to prevent liquid from flowing back into the tank once the pumps stop
  • Each pump has a separate motor lockable disconnect that allows maintenance work to be performed on one pump while the other is still in service
  • All pump lift stations include a high-high level switch to activate a high level alarm
  • Lift stations require Wastech IPCP series industrial control panels (or equivalent)











Standard Features

  • Molded polyethylene tank (16, 32, and 56 gallon tanks standard, custom sizes available)
  • Fabricated polypropylene lid
  • One or two pumps—CPVC pump head
  • Pump suction strainer
  • TEFC thermally protected motors
  • Lockable disconnect for each pump
  • Check valve for each pump with Viton elastomers
  • 2” FNPT top mount inlet connection
  • 2” FNPT top mount vent connection
  • 4”x6” view window for maintenance access
  • Multipoint level switch assembly with digital level display
  • NEMA 4X junction box to connect to remote control panel

Optional Features

  • Fabricated polypropylene double containment tank with float leak switch
  • 6’ pre-wired flex cable to connect to remote control panel
  • Side inlet connection
  • Discharge manifold with isolation ball valves
  • Discharge manifold enclosure
  • Seismic tie downs
  • PP and PVDF pumps and fittings

Have questions about ordering a custom system?

One of Wastech’s application engineers will discuss the nature of your process with you exclusively for your facility.
Call (818) 998-3500 or email This email address is being protected from spambots. You need JavaScript enabled to view it. for a quote or more information.
